Lecture 3 Circuit Theorems 电路定理

. 4 min read

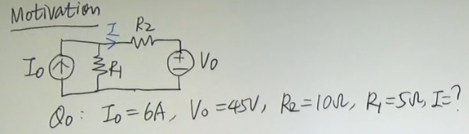

motivation

which should be easy to solve according to the lecture 2.

Linear property 线性定理

What if

  • $I_0 = 12A$?
  • $V_0=90V$?

Will  $I=aI_0+bV_0$?

Excitation(source)->Response (voltage/current)

$$
x \to \fbox{system}\to f(x)
$$

A linear circuit consists of only linear elements (resistors, capacitors and inductors), linear dependent sources, and independent sources.含有且仅有线性元件与电源

Homogeneity property 齐次性

$$
\alpha x \to \fbox{system}\to \alpha f(x)
$$

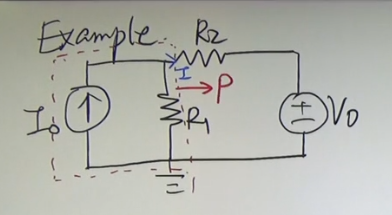

Example

Find f,g,where $I=f(I_0,V_0),P = g(I_0,V_0)$

solution:

Mesh analysis
$$
-(I-I_0)R_1-IR_2-V_0=0 \\
-I(R_1+R_2) = V_0-I_0R_1 \\
I=\frac{R_1}{R_1+R_2}I_0+\frac{-1}{R_1+R_2}V_0
$$

$$
P = UI = V_{R_1}I = (I_0-I)R_1I\\
P = (\frac{R_1}{R_1+R_2}I_0+\frac{1}{R_1+R_2}V_0) R_1 (\frac{R_1}{R_1+R_2}I_0+\frac{-1}{R_1+R_2}V_0) \\= a'I_0^2+b'V_0I_+c'V_0^2
$$

Super position Theorem 叠加定理

What if

  • $I_0 = 0A, I'=?$
  • $V_0=0V,I''=?$

Will $I=I'+I''$?

The superposition principle states that the voltage across (or current through) an element in a linear circuit is the algebraic sum of the voltages across (or currents through) that element due to each independent source acting alone./用独立源计算(就是将其他电源完全关闭状态下测算

Additivity property

$$
x_1+x_2\to\fbox{system}\to f(x)+f(x2)
$$

Proof

$$ I' = \frac{R_1}{R_1+R_2}I_0 \\ I'' = \frac{-1}{R_1+R_2}V_0 \\ I = I'+I'' = \frac{R_1}{R_1+R_2}I_0+\frac{-1}{R_1+R_2}V_0 = aI_0+bV_0 $$

Note:

  1. Linear Circuit
  2. one independent source at a time
  3. dependent source are left alone inside the circuit

Advantages:

  1. simplify the analyzing process
  2. Evaluate the sensitivity of response to a specific source

Super position Theorem is a inference of linear property

Example

Find  $i$ using Super position Theorem

  • $i$'s contribution is from the independent voltage source:


$$
10v-2Ωi'-1Ωi'-2i'=0 \\
i' = 2A
$$

  • $i$'s contribution is from the independent current source:


$$
-2Ωi''-V=0\\
V-(i''+5A)1Ω-2i''=0
i' = -1A
$$

$$
i= i‘+i'' =1A
$$

Thevenin’s theorem/戴维南定理 • Source transformation电源变换定理 • Norton’s theorem/诺顿定理

What if $R_2 = 1Ω,I=?$

What if $R_2 = 5Ω,I=?$

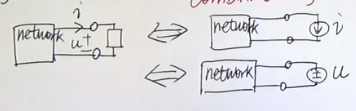

Substitution Theorem

If we know the voltage across/ the current trough any branch of a network, the branch can be replaced by a voltage or current source that will make the same voltage and current through that branch.

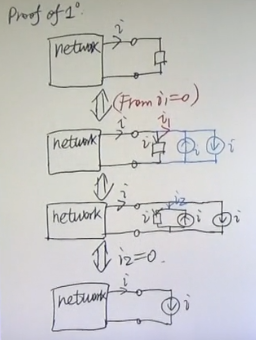

proof

core: KCL,KVL 等物理关系在原电路中保持不变

Thevenin’s theorem/戴维南定理

motivation

complex linear system (CLS) which contains resistors independent sources dependent sources only.

Equivalent circuit for CLS Handle variable loads.

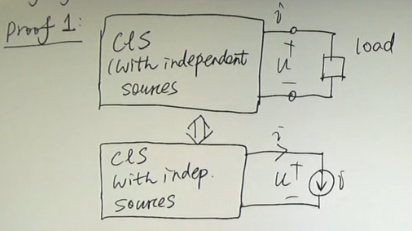

proof:


$$
U' = U_{oc} = U_{Th} \\
U'' = -R_{eq}i \\
U= U'+U'' =U_{Th}+R_{eq}i \\
U = U_{Th}-R_{Th}i
$$

proof2:

In CLS assuming  M independent voltage sources

and N independent currunt sources
$$
U= Ai+\sum^{M}{j=1}B_jV{S_j}+\sum^N_{k=1}C_kI_{S_k}\\
U= Ai+CONST \\
$$
Find $CONST$ if $i=0$, $U=U_{oc} =U_{Th}$

Find $A$ if $V_{S_j},I_{S_k}=0,A=U/i=-R_{Th}$

$$U = U_{Th}-R_{Th}i$$

Note

  1. $V_{Th}= U_{oc}$
  2. to get $R_{Th}$
  3. equivalent resistance with all indeoendent sources turned off (does not work for circuits with dependent sources)只适用于无非独立源
  4. calculate shout circuit current (isc)-> $R_{Th} = \frac{V_{oc}}{i_{sc}}$
  5. Deactivate all independent sources, add external source $V_{ex}$, slove current $i_{ex}$ $R_{Th} = \frac{V_{ex}}{i_{ex}}$
  6. 任意取(u,i)算系数

Example1

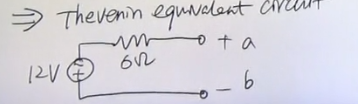

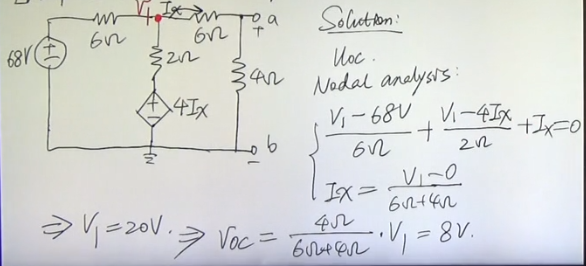

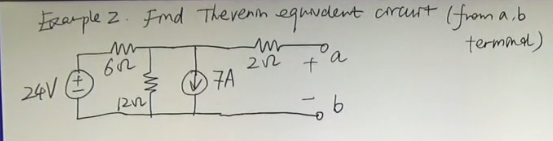

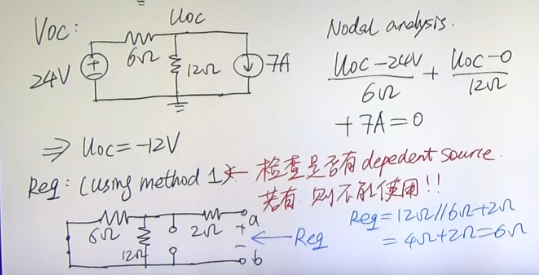

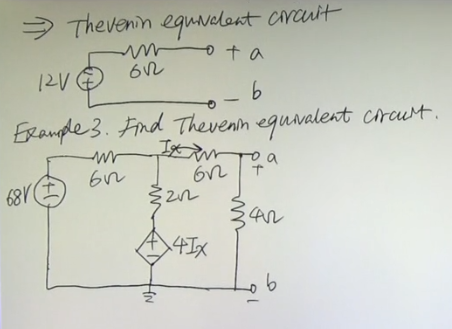

Example2

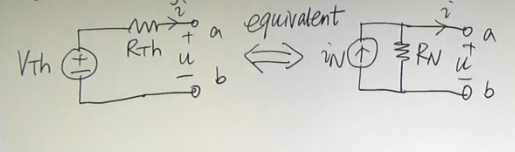

source transformation and norton Theorem


$$
I_{sc} = I_{N}\\
R_N = R_{Th} \\
I_N = \frac{V_{Th}}{R_{Th}} \\
$$

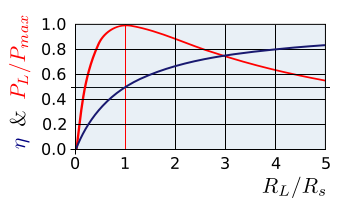

Maximum Power Transfer Theorem


$$
P_L = I^2R_L=(\frac{V}{R_s+R_L})^2R_L=\frac{V^2}{R_s^2/R_L+2R_s+R_L}\\
when \space R_L = \pm R_S, P_L \space gets \space its \space maximum \space  power
$$
